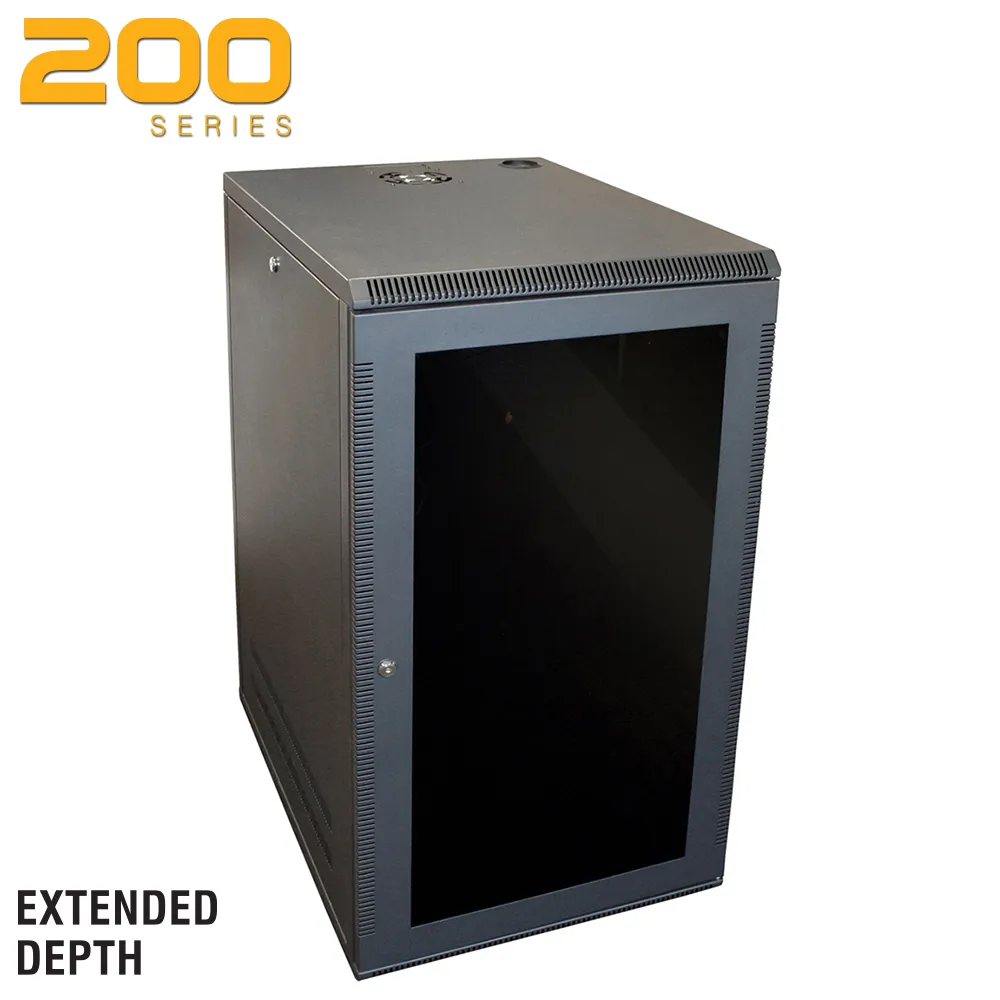

EXTENDED DEPTH WALL MOUNT ENCLOSURE W/ REMOVABLE PANELS – 200 SERIES (21″W X 28″D)
Quick Overview
The 200 Series Extended Depth Wall Mount Enclosures provide usable working depth of up to 24″. These enclosures allow equipment access through the smoked acrylic reversible front door, as well as through the removable vented side panels. They include one preinstalled 80 CFM fan for ventilation, and come complete with both front and rear cage nut rails. Available in four sizes with a black powdercoat microfinish.
OVERVIEW
The 200 Series Extended Depth Wall Mount Enclosures provide usable working depth of up to 24″. These enclosures allow equipment access through the smoked acrylic reversible front door, as well as through the removable vented side panels. They include one preinstalled 80 CFM fan for ventilation, and come complete with both front and rear cage nut rails. Available in four sizes with a black powdercoat microfinish.
Description
• 24ʺ usable working depth

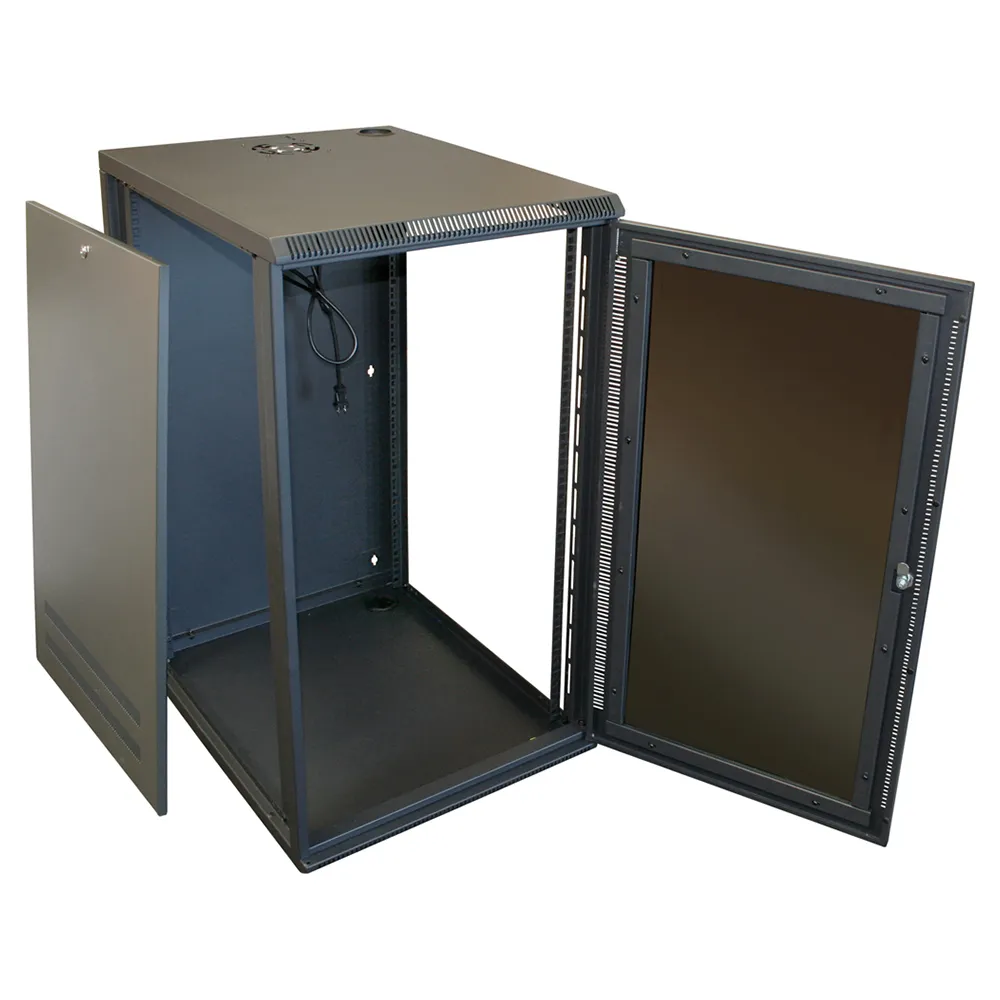

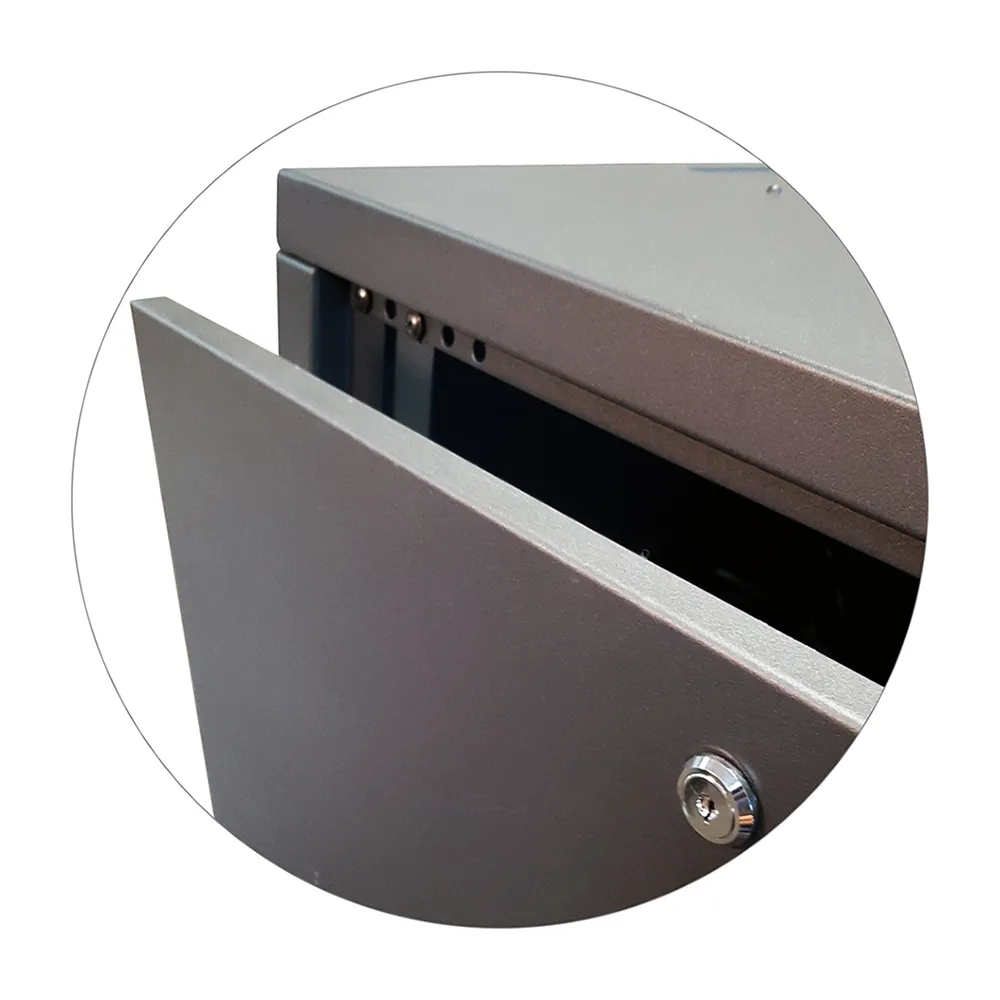

• Vented removable side panels with key lock for secure and easy access
• Smoked acrylic front door with lock (Reversible for left or right side opening)
• Cable access cutouts on top and bottom
• Adjustable front and rear sets of cage nut rails
• All cage nut rails are marked with an RU space index for easy alignment
• Includes cage nuts, #12-24 mounting screws and washers (12 of each)

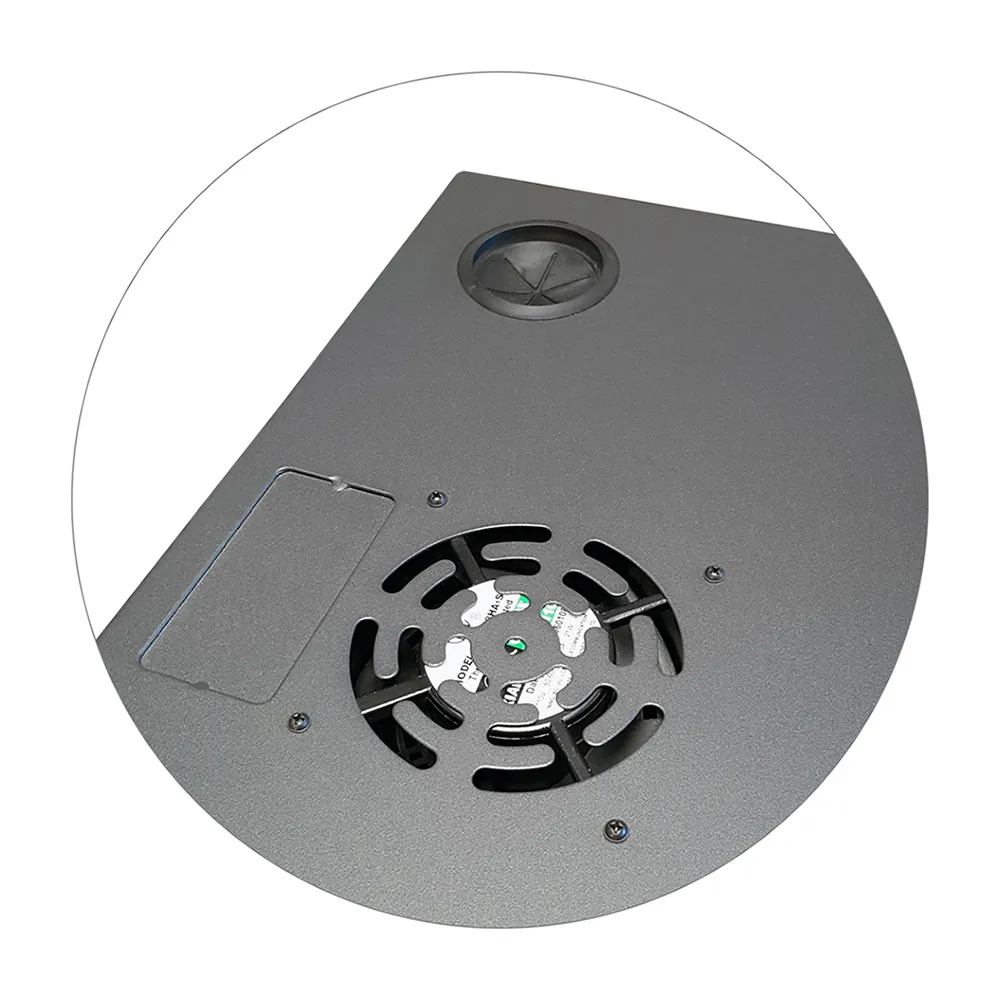

• Pre-Installed 110VAC 80CFM Fan keeps equipment running cool
• Top cutout for an additional box fan
• Heavy-Duty 18 AWG, Reinforced Steel Frame
• Black Powdercoat MicroFinish
• Includes 2 keys
• All 9U and 11U sizes are UPS shippable
• No Assembly Required
• EIA-310D Compliant
Specifications
| Color | Black |
| Floor Door | Smoked Acrylic (Reversible) |
| Structure | 18 AWG Steel |
| Load Capacity | 130 lbs |
| Ventilation | 80CFM 110V Fan |
| # of Mounting Rails | 4 (2 sets) |
| Cage Nuts, Screws & Washers | 12 each |
| Cable Access | Top & Bottom Cutouts |
| Keys | Included |
