EXTENDED DEPTH WALL MOUNT ENCLOSURE W/ REAR SWING-OUT – 300 SERIES (20.5″W X 30.5″D)

SKU: N/A

Quick Overview

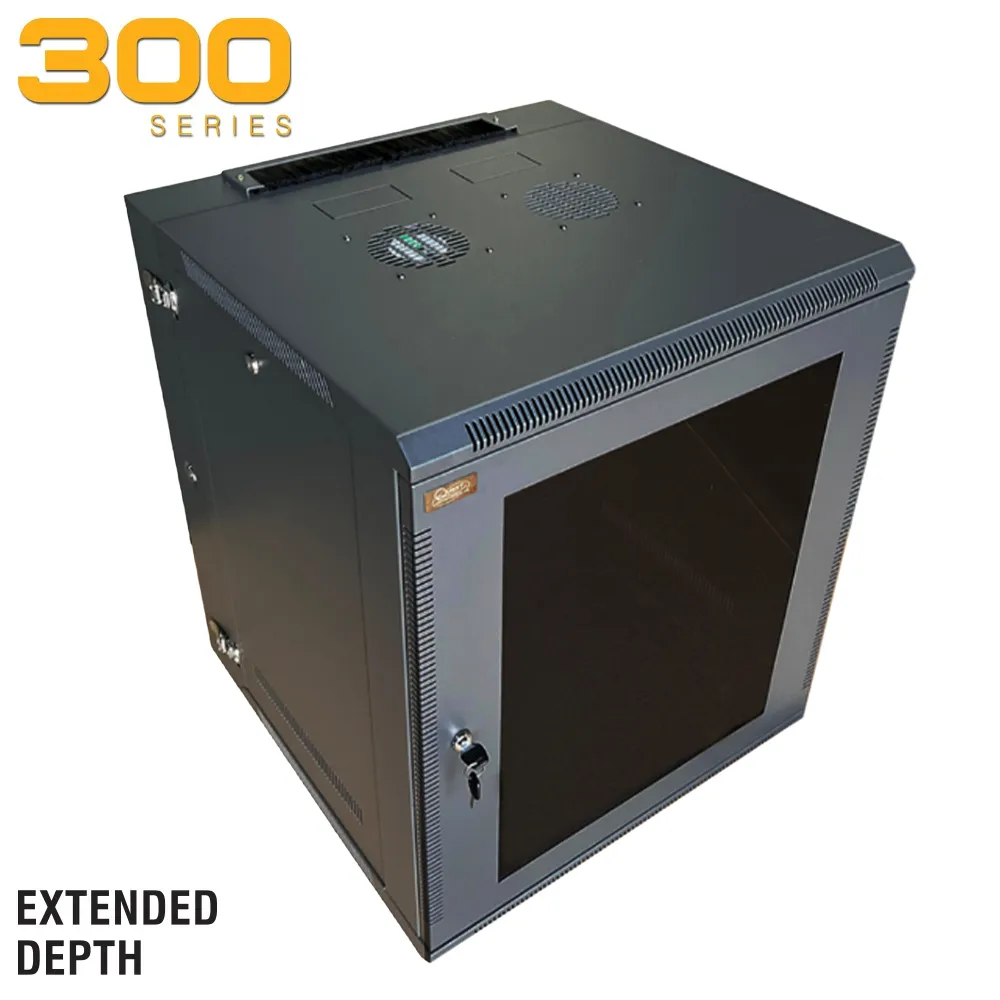

The 300 Series Extended Depth Wall Mount Enclosures provide usable working depth of up to 27″. These enclosures allow equipment access through the smoked acrylic reversible front door, removable side panels, as well as through the lockable rear swing-out. They include one preinstalled 80 CFM fan for ventilation, and come complete with both front and rear cage nut rails. Available in various sizes with a black powder coat micro finish.

OVERVIEW

The 300 Series Extended Depth Wall Mount Enclosures provide usable working depth of up to 27″. These enclosures allow equipment access through the smoked acrylic reversible front door, removable side panels, as well as through the lockable rear swing-out. They include one preinstalled 80 CFM fan for ventilation, and come complete with both front and rear cage nut rails. Available in various sizes with a black powder coat micro finish.

Description

(UPDATED 12/2024)

  • Extended 27ʺ usable working depth

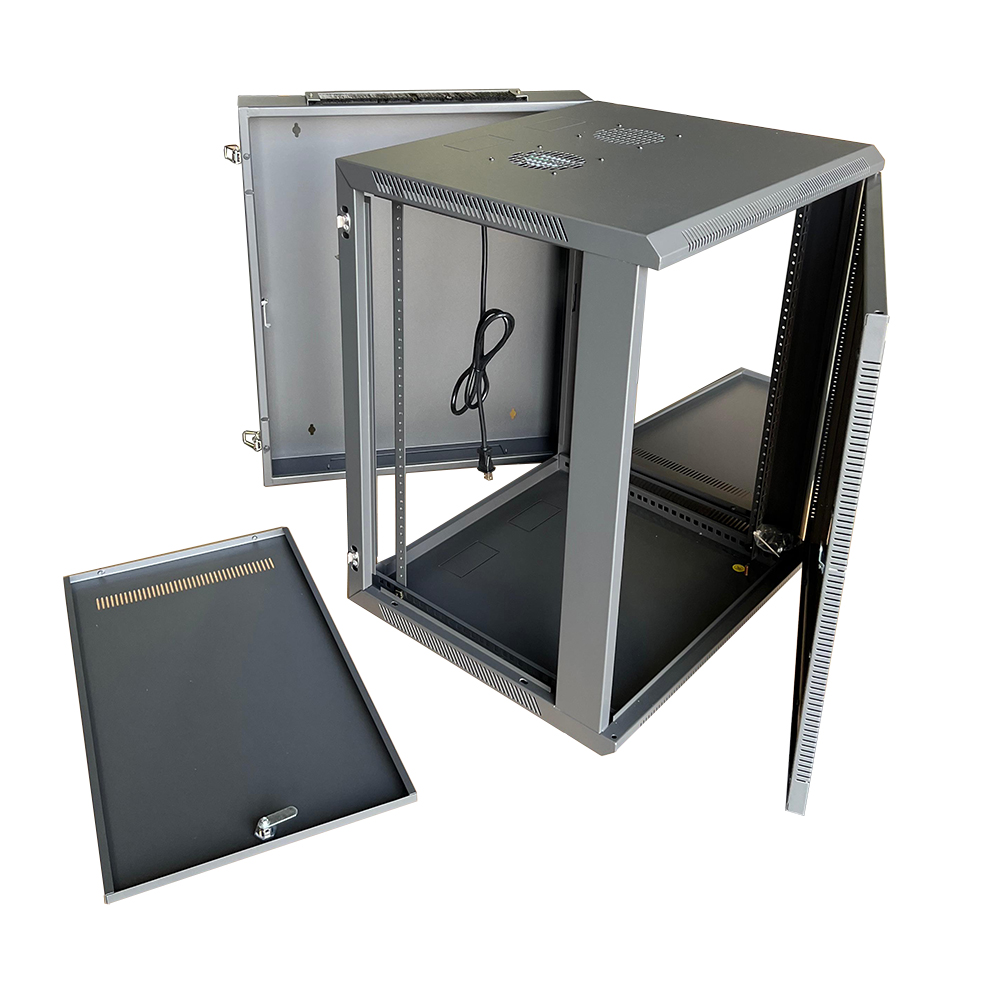

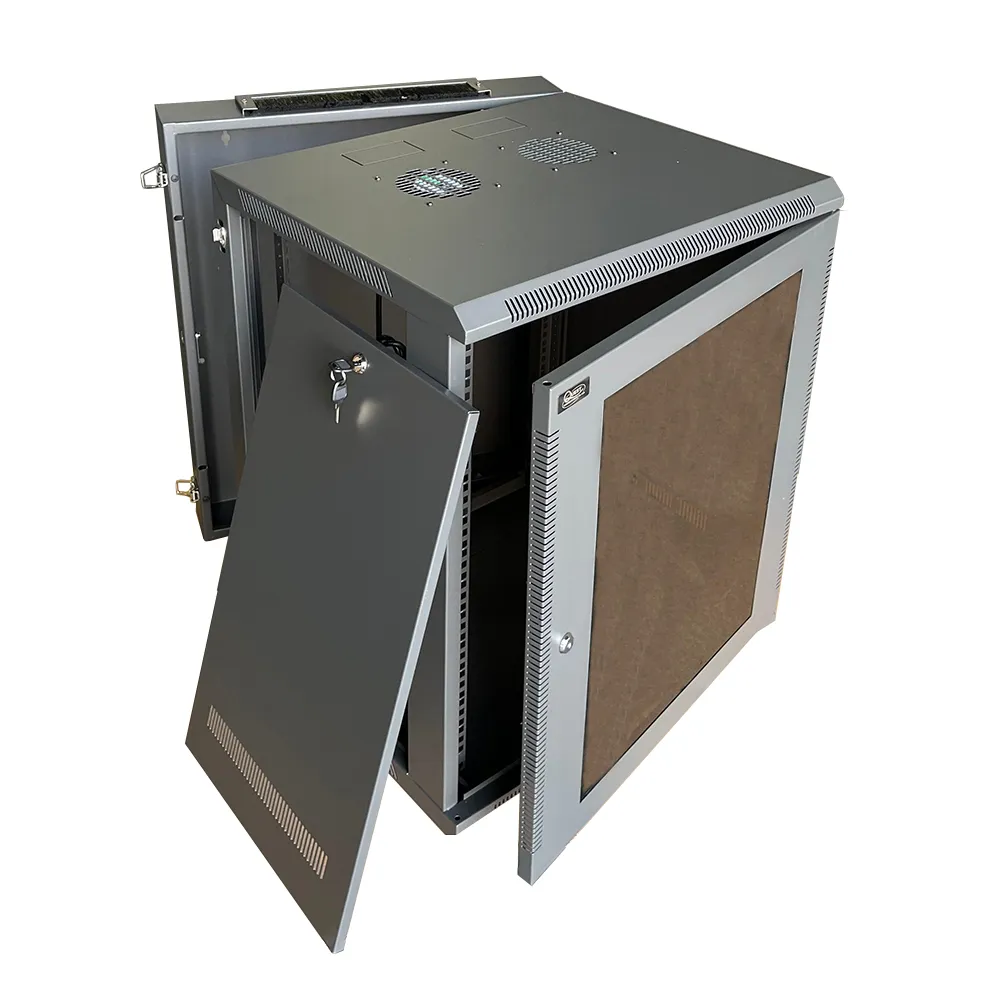

  • Rear swing-out mounted door allows easy access to the back
  • Rear door features reinforced hinges & latches, and a key lock to secure
  • Removable locking side panels
  • Heavy-duty 18 AWG steel construction with black powder coat micro finish
  • 4 adjustable cage nut mounting rails (Front and rear sets)
  • Reinforced locking reversible smoked acrylic door
  • 1 pre-installed 110VAC 80CFM fan keeps equipment running cool (Optional second fan cutout provided)
  • Brush style cable pass-through
  • Cable access cutouts on top and bottom
  • Equipment mounting hardware and keys included
  • Available 9U to 28U heights
  • No assembly required
  • All 7U to 11U sizes are UPS shippable
  • EIA-310D compliant

Specifications

Color Black
Floor Door Smoked Acrylic (Reversible)
Structure 18 AWG Steel
Load Capacity 130 lbs
Ventilation 80CFM 110V Fan
# of Mounting Rails 4 (2 sets)
Cage Nuts, Screws & Washers 12 each
Cable Access Top & Bottom Cutouts
Keys Included
