4FT, 18 OUTLETS, VERTICAL RACK MOUNT POWER STRIP, 125V/15A
Login
Quick Overview
Quest vertical Power Distribution Units (PDU) are UL listed and are available in 4ft and 6ft lengths. They are ideal for use in both floor enclosures and open frame racks, and are designed with an extra long 15 ft power cable with a standard 120V AC plug. All come standard with removable mounting brackets and have a black microfinish to match rack and enclosure color.
| Color | Height | Length | Width | Weight |
|---|---|---|---|---|
| Black | 48″ | 3″ | 2″ | 4 lbs |
| Package Length | Package Width | Package Height | Package Weight |
|---|---|---|---|
| 51″ | 5″ | 3″ | 5 lbs |
OVERVIEW
Quest vertical Power Distribution Units (PDU) are UL listed and are available in 4ft and 6ft lengths. They are ideal for use in both floor enclosures and open frame racks, and are designed with an extra long 15 ft power cable with a standard 120V AC plug. All come standard with removable mounting brackets and have a black microfinish to match rack and enclosure color.
| Color | Height | Length | Width | Weight |
|---|---|---|---|---|
| Black | 48″ | 3″ | 2″ | 4 lbs |
| Package Length | Package Width | Package Height | Package Weight |
|---|---|---|---|
| 51″ | 5″ | 3″ | 5 lbs |
Description
| Mounting Position | Vertical |
| Mounting Bracket & Hardware | Included |
| AC Rating Volts | 125V |
| AC Rating Amps | 15Amp |
| AC Rating Watts | 1875W |
| AC Rating Frequency | 60Hz |
| Circuit Breaker Switch | 15A |
| Power LED Indicator | Red |
| Outlets | 18 |
| Outlet Max. Output | 12Amp |
| Receptacle Type | NEMA 5-15R |
| Power Cable | 14 AWG / 3 SJT |
| Cable Length | 15 ft |
| Plug Type | NEMA 5-15P |
| Housing Material | Aluminum |
| Color | Black |
| Certification | UL, RoHS |
Drawings

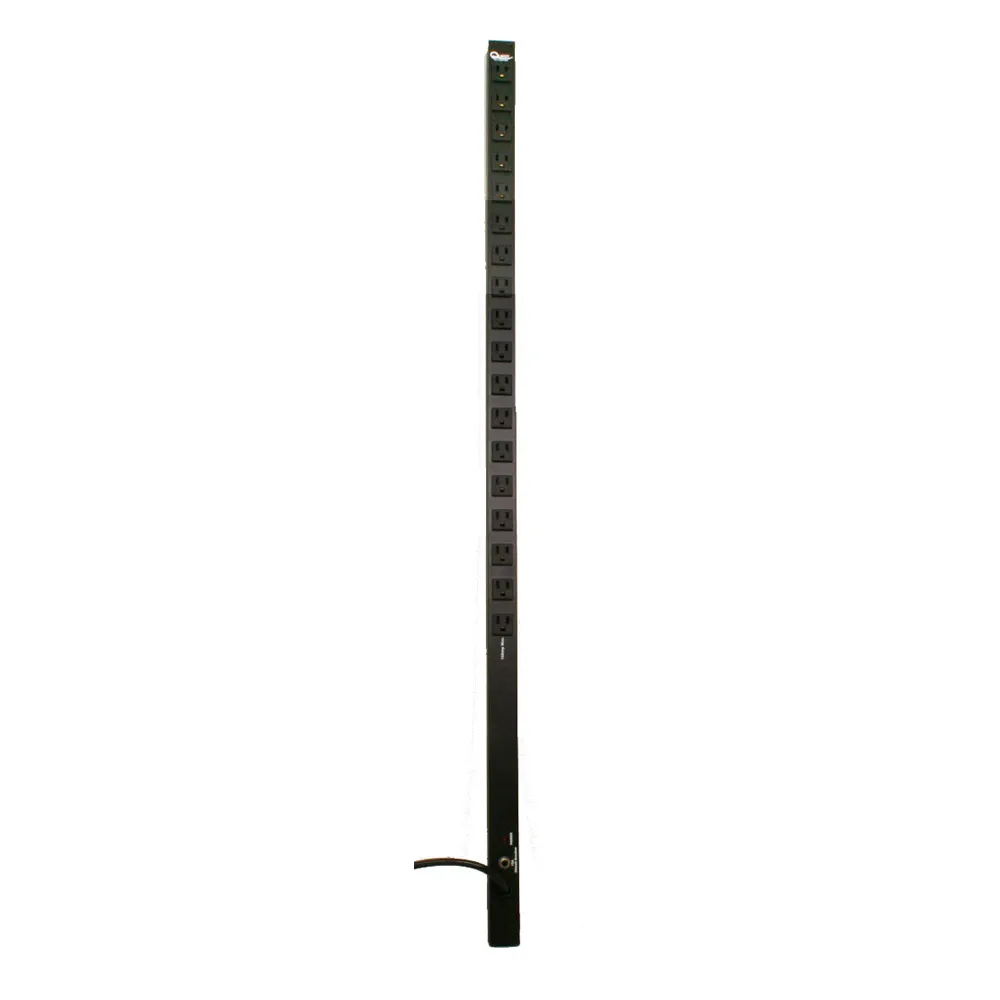

VPS-1804</i
